Product Gallery

Extreme Temperature Coil Pair
Application: Nuclear Test
Details: Temperature Rating of over 1000F
12AWG Conductor, Double-Eglass,High Temp Silcone binder
3M Ceramic Fiber Cloth Tape

Solenoid, Dip Coated, Moisture Sealed
Application: Research/Development Application
Details: 1/2″ ID, 2″ Length 1000G field requires operation in a cooling bath

Dip coated for sealing from cooling fluid

Self-supporting Electromagnet
Application: Robotics system
Details: self-supporting electromagnet, bonded into steel shell using thermally conductive elastomer

Electromagnet Encapsulated in Steel Holder
Application: Robotic system exposed to very harsh environment
Details: #18 awg conductor coil encapsulated with thermally conductive elastomer.

Large Electromagnet for Precision Measurement System
Details: 19″ ID and 24″ OD, using hollow core conductor, DDG insulated.
Industry: Completed for a UC Berkeley research project; part of a precision measurement system which measures gravity using atom interferometry to determine quantum interference.

“Stepped Up” Internal Diameter
Industry: This part goes into a magneto optical trap kit used for cooling and trapping neutral atoms for atomic physics applications.

Details: #12 AWG shaped conductor, thermal cut off switch
Industry: Semiconductor equipment processing

Industry: Satellite technology for broadband internet

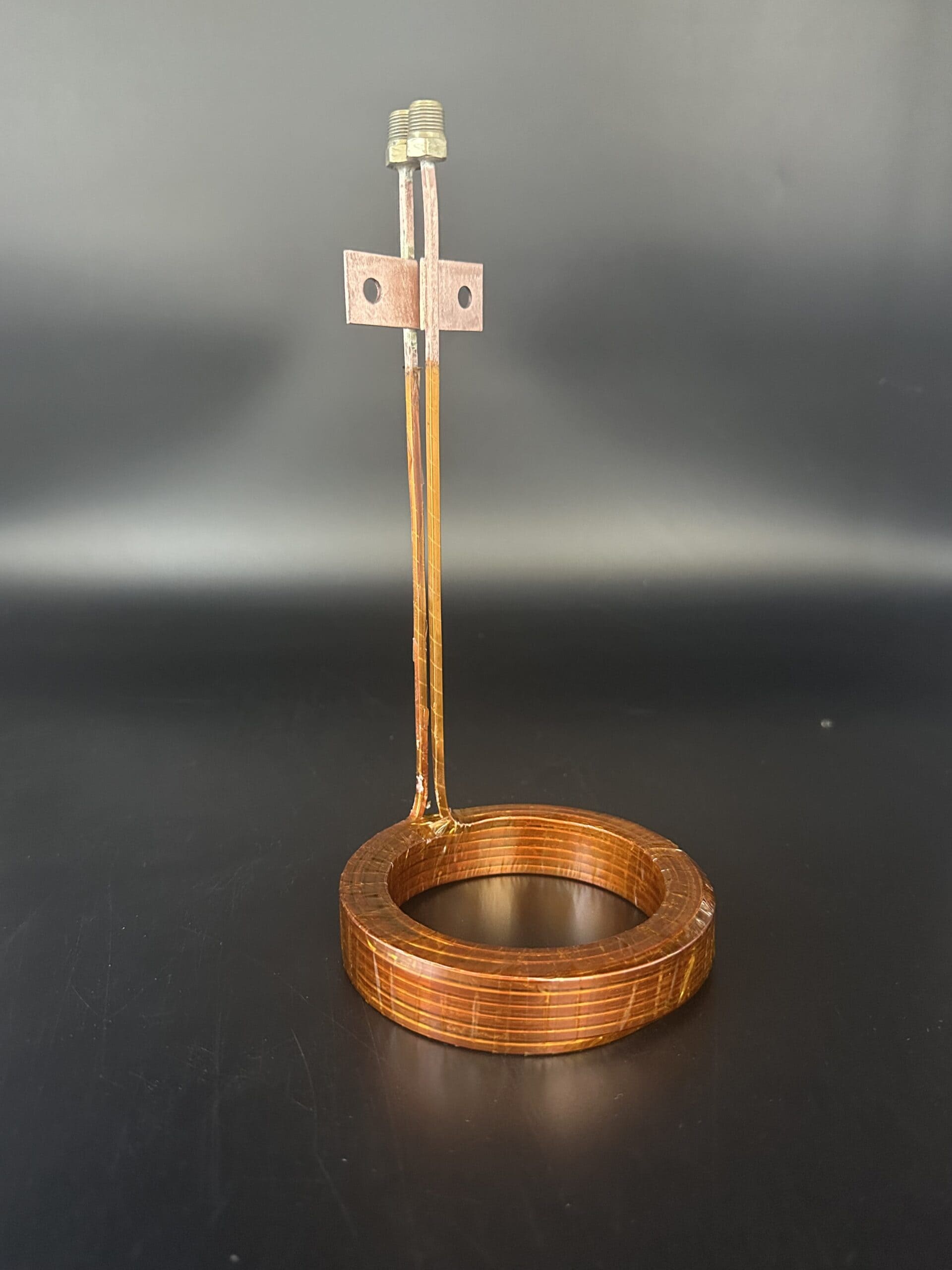

High power water cooled electromagnet.
Details: .157 Sq x .078 hollow core conductor, 48” leads with copper tab connections.

Highly concentrated field electro magnet
Details: .255 sq x .125 hollow core conductor, with multiple cooling path configuration.  Copper tabs applied to connect each coil as required.

Electron Beam Guiding Solenoid
Details: 8”ID,26”Length,260 Turns, 240lbs
Inter-coil water cooling
Industry Example: Used in Oncology / Radiation System

Solenoid Self-Supported Coil, Aluminum Conductor
Details: 2.5” ID, 17” Length, 1950 Perfect Layer Turns
10AWG Aluminum Conductor, Reduced overall weight
Industry Example: Used in Wave Power Generation System

Pulse Forming Network Coil Assembly
Details: 3/6” Copper Tubing, 63 Turns Evenly pitched
Wound on 4.5” acrylic tubing, 30” Length
Industry Example: Medical Equipment Industry

RF Match Inductor
Details: 0.150×0.250 Copper Conductor, Gold Plated
7 Turns, evenly pitch
Tight dimensional tolerance for mounting

Solenoid Actuator Coil
Details: 24AWG Bondable Conductor, 500 Perfect-Layered Turns
-0.52” ID, 1.28” Length
Industry Example: Solar Power Application

Solenoid Coil

Solenoid Coil, ID Cooled
Details: 14AWG Conductor, 2052 Turns
ID Cooling Layer, Copper Sheet, ¼” Copper Tubing
Industry Example: University R&D

RF Coil on Ceramic Dome
Details: 3/8 Copper Tube even pitched, Encapsulated in thermally conductive silicone

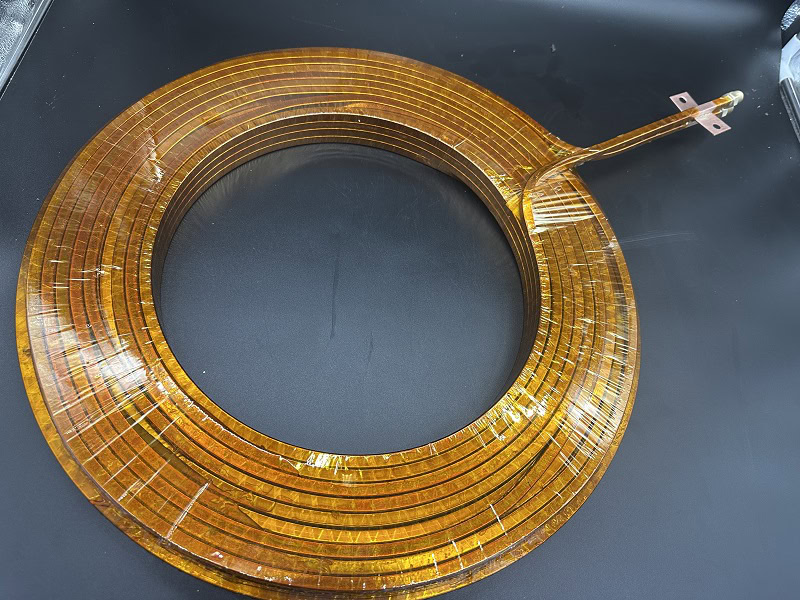

Upset Wound, Water Cooled
Details: 0.255SQ x 0.125 hollow core conductor with Kapton Wrap Insulation
Wound to allow OD lead exit and flat surface assembly.
Industry Example: University R&D

Beam Bending Magnet, Water Cooled, High Power
Details: 0.255SQ x 0.125 Round Internal Bore
Single Coil with Multiple Cooling Paths
Industry Example: Used to Bend and focus beam in Oncology/Radiation treatment

Coil Encapsulated in Cooling Form
Details: 12AWG Conductor, 483 Turns
Potted in a cooling form using thermally conductive elastomer
Industry Example: Used in Semiconductor Etch system

Solenoid Actuator Coil
Details: 28AWG Conductor, 650 Turns
Custom Bobbin, Perfect Layer Winding
Industry Example: Used in a Push/Pull Actuator Switch Assembly

3D Magneto Optical Trap (MOT) Coil
Details: -0.183” Square with 0.787 Round bore hollow core conductor
24 Turns with In-line cooling, Glass Cloth tape wrap
Custom Fluid fittings and electrical connections
Industry Example: National Lab Research Project

Electromagnetic Propulsion Coil
Details: 14AWG Square Conductor, 2508 Turns
2.3” ID, 8.6” OD, 4” Length, 53lbs
Embedded Thermocouple for Temperature Control

Octagonal Magnet

Partical Accelerator Solenoid, Cooled
Details: 3AWG Square Conductor, 910 Turns, 482 lbs
15” OD, 30” Length, 482 lbs.
Target Magnetic Field, 600 Guass @ 40Amp
Outer Cooling layer, Copper Sheet with 3/8 Copper Tubing
Industry Example: University KATRIN Research

Solenoid, Square
Example: 10AWG Conductor, 4 Separate Coil Windings
4.5”x4.5” ID, 18” Length, 2656 Turns, 185 lbs
Industries: Used in Power Generation System

Steering Coil
Details: 22AWG Bondable Conductor, 109 Turns
2.0”L x 1.3”W
Industries: Used in Electron Therapy System for Cancer Treatment

Steel OD Tube Solenoid
Details: 22AWG, 399 Turns
-1.65” ID, 5” Length
Wound as self-supported Coil and Bonded to Steel Tube
Industries: Used in Aerospace Actuator Application

Steering Coil, Vacuum Casted
Details: 2 Coil Assembly wound and mounted to a copper form
Precision vacuum casting for complete air free encapsulation
And tight dimensional tolerancing.
Industries: Used to steer and focus electron beam for radiation therapy

4-Coil Water Cooled Assembly
Details: 5mil Thick copper foil coils, 400 Turns each
Assembled and bonded between copper cooling plates
Industry Example: Used in University research focusing on high-power vacuum electron particle acceleration

Solenoid, ID Cooled
Details: 12AWG Square conductor, 600 turns
4.6” ID, 7” OD, 21lbs
ID Cooling, Copper Sheet Lined ID, ¼” Copper Tube
Industry Example: University research project for focusing electron beams

Multi-Bend Water Cooled Coil
Details: -0.183” SQ x 0.100 RD hollow conductor for inline cooling
22” L x 4” W
Precision bend and lead routing location
Industry Example: Used for Beam acceleration and focusing in medial device application

Multi-Cooled Hollow Core Coil
Details: 24.4” L x 12.8” W, 250lbs
-0.220SQ x 0.142 RD bore hollow core conductor,
12 Coils, 40 Turns Each, Upset wound for OD lead orientation and flatness
Stacked and bonded for single 480 turn coil with 12 cooling paths
Industry Example: Used as high power main coil in leading Magnetic Particle Imaging (MPI) System.

Formed Steering Coil
Details: 22AWG, 105 turn, precision wound
2.75”L x 2.25W” OD
Formed for precise fit in an 8 coil assembly
Industry Example: Used for beam steering and guiding in medical device system

Gold Plated Inductor
Details: -0.150×0.250 Bare Copper Conductor, Gold Plated
Precision pitch winding with precise lead location for assembly
Industry Example: Used in an RF impedance match system for the Semiconductor equipment industry
